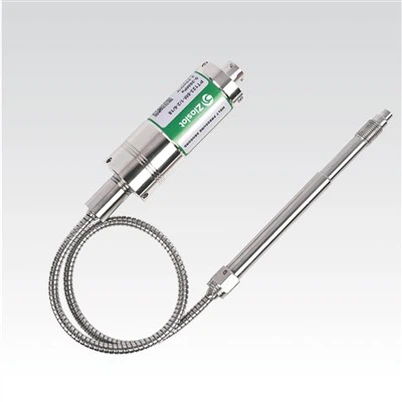

Digital Display Melt Pressure Transmitter

Siab Siab: 0-3.5MPa, 0-200MPa;
Qhov tseeb: ± 0.5% FS;
Tawm tswv yim tawm tswv yim: 4-20 mA;
Kub: 400 degree;
Plaub- lej zaub;

Xa kev nug

Download tau

Hauj lwm lawm

Nta

Wireless transmitter;
Txheej tshwj xeeb ntawm diaphragm;
IP65 qib kev nyab xeeb;
Plaub tus lej zaub;
yeem tso zis relay;
Intrinsically Safe hom;
Kev tawg-Cov qauv pov thawj nrog cov duab digital;
Hart +4 ~ 20mA;
Patented Khoom.

Daim ntawv thov

Kev lag luam tshuaj fiber ntau

Txhaj tshuaj molding kev lag luam

Product Description

Melt siab transmitter nrog cov zaub yog tsim los ntsuas kub hauv kev txhaj tshuaj molding kev lag luam thiab tshuaj fiber ntau kev lag luam, cov khoom siv tshwj xeeb diaphrgam thiab tiv thaiv heev -abrasive txheej uas ua rau nws ua hauj lwm ib txwm nyob rau hauv high tem perature mus txog 400℃.Cov koob no txais threaded kev twb kev txuas thiab digital zaub nrog relay tso zis muaj.

Technical Parameters

Kev tawm tswv yim Voltage 24VDC (12-36VDC)
Choj tsis kam 350Ω
Cov zis hluav taws xob 4-20mA
Diaphragm Khoom 17-4PH
Qib raug ± 0.5% FS
Diaphragm Temp 400 degree
Siab Ntau Yam 0-3.5MPa, 0-200MPa
E-Kev Txuas M12 aviation connector
Siab Unit MPa
Mounting Torque 40N.m Max
Overload Capacity 1.5 npaug ntawm qhov ntsuas siab
Txheej txheem kev sib txuas 1/2-20UNF
Zero Temp Drift 0.003MPa / degree
Kev tiv thaiv qib IP65
Hluav taws xob Environmental Temp -20-85℃Temp
Kev ntsuas E, J, K hom lossis Pt100
Tswb hom optocoupler tso zis, relay tso zis, transistor tso zis
